Park Biznesu Teofilów, a 9000m2 commercial and office development in the city of Lodz in Poland


MagiCAD Group

MEP Design

Pol-Con Consulting is a leading Polish design company with an extensive MagiCAD experience. They have been using MagiCAD for more than five years in a large number of projects.

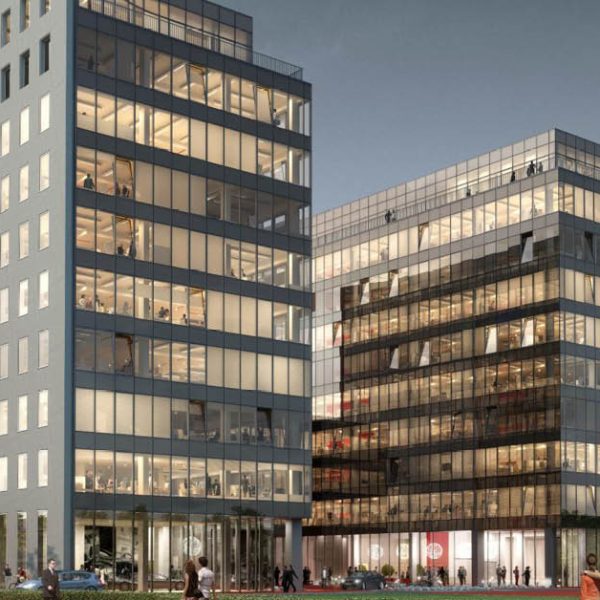

One of their recent assignments is Park Biznesu Teofilów, a commercial and office development in the city of Lodz in Poland. The first of four nine-storey buildings is already finished. It will provide about 9,000 m2 of office space and a two-storey underground parking garage for 126 cars.

Pol-Con’s assignment

Pol-Con Consulting’s work covered the design of MEP installations for Park Biznesu Teofilów – ventilation, heating, cooling, water and sewage. They used MagiCAD Ventilation and MagiCAD Heating & Piping on AutoCAD technology.

The whole ventilation design was performed in 3D. Other installations were designed with a mix of 2D and 3D. The more simple and repetitive installations were done in 2D, while piping installations in more crowded areas such as connection rooms, engine rooms and garages were done in 3D.

Flexible delivery

In this project Pol-Con delivered the final design as traditional drawings on paper, and as a complete digital model in .dwg format. The contractor could easy visualize the entire design in 3D with the help of MagiCAD Object Enabler.
